Explanation;

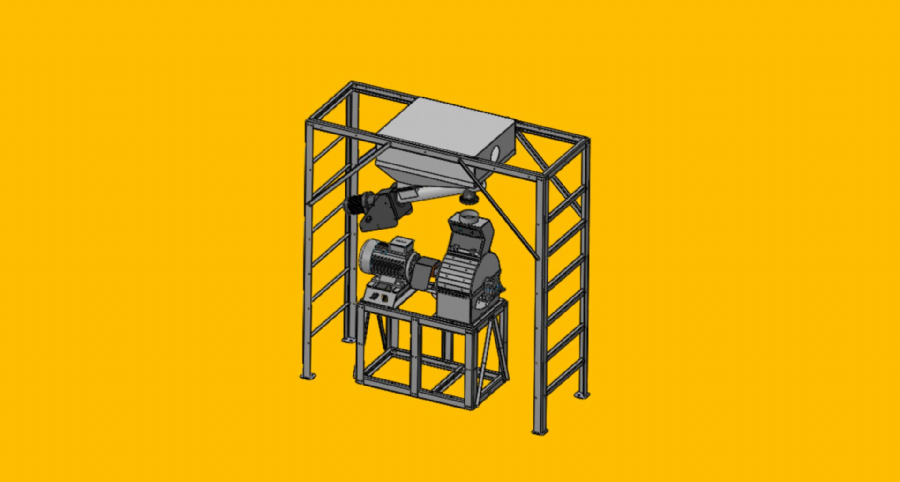

Grain is the machine that allows the goods to be grinded in the desired size.
Specifications;
It can turn to both sides.
Powerful rotor of which Dynamic and static balance have been taken.
It can grind the raw materials in 0.2-0.8 kg/dm3 density .
Electro pneumatic deflector,Silent operating 90-93 db.
Easy change sieve and hammer system.
The safety system which can lock the lids when Motor current was given.
Rotor can turn to both sizes,Powerful and long life ball bearing system.
The hammer and hammer bar spindles which are hardened through heat treatment
It can turn to both sides.
Powerful rotor of which Dynamic and static balance have been taken.
It can grind the raw materials in 0.2-0.8 kg/dm3 density .
Electro pneumatic deflector,Silent operating 90-93 db.
Easy change sieve and hammer system.
The safety system which can lock the lids when Motor current was given.
Rotor can turn to both sizes,Powerful and long life ball bearing system.
The hammer and hammer bar spindles which are hardened through heat treatment
| MODEL | TİP TYPE | KAPASİTE CAPACITY | GÜÇ POWER | DEVİR RPM | A | B | C | D | E | F | G | AĞIRLIK WEIGHT |
| KRM-CD1T | BCK36/6 | 1 Ton | 7.5 KW | 2990 rpm | 1200 mm | 700 mm | 2580 mm | - | - | - | - | - |
| KRM-CD3T | BCK60/10 | 3 Ton | 15 KW | 2990 rpm | 1000 mm | 520 mm | 2400 mm | - | - | - | - | - |
Kapesite 3 mm delik çapına göre ortalama değerlerle hesaplanıştır.Hesaplar mısıra göre hesaplanmıştır.Arpa için yarıyarıya hesaplanabilinir.Bunun için firmamız ile irtibata geçiniz.
KARME MÜHENDİSLİK resimlerde,ölçülerde ve makine özelliklerinde haber vermeden değişiklik yapma hakkını saklı tutar.
